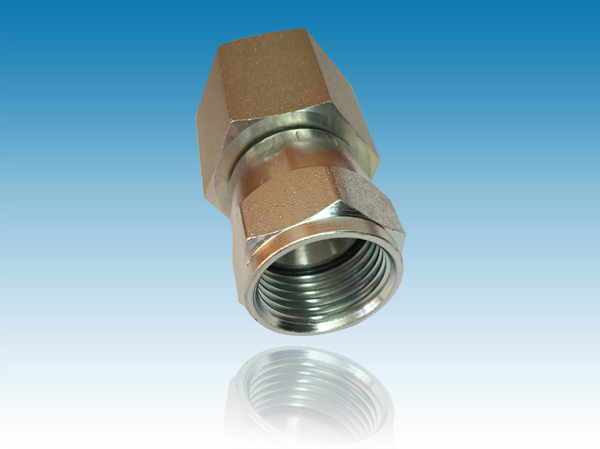

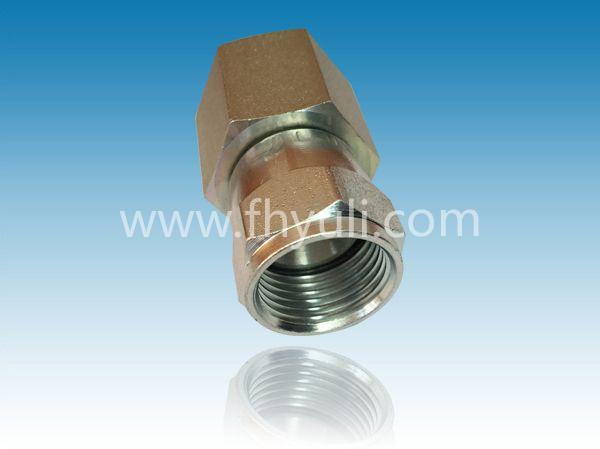

【產品名稱】 美制JIC螺紋37°擴口式直管接頭 6506系列
【所屬分類】 美制JIC螺紋37°接頭 【產品型號】 6506 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| 品牌： | NJ |
| 型號： | 6506 |
| 材質： | 碳鋼 |
| 規格： | 直管 |
| 加工定制 | 是 |
| 適用范圍： | 機械設備 |
| 螺紋類型： | 直螺紋 |
| 鏈接方式 | 螺紋 |
| Product ID | Description | TUBE O.D. | B NPTF | A SAE 37 | A DRILL | L2 LGTH | L5 LGTH | C HEX | C4 HEX |
| 6506-02-04 | 02FP-04FJS Straight | 1/4 | 1/8-27 | 7/16-20 | 0.172 | 0.98 | 1.33 | 0.563 | 0.562 |
| 6506-02-04-SS | 02FP-04FJS Straight Stnls | 1/4 | 1/8-27 | 7/16-20 | 0.172 | 0.98 | 1.33 | 0.563 | 0.562 |
| 6506-04-02 | 04FP-02FJS Straight | 1/8 | 1/4-18 | 5/16-24 | 0.062 | 1.20 | 1.51 | 0.438 | 0.750 |
| 6506-04-04 | 04FP-04FJS Straight | 1/4 | 1/4-18 | 7/16-20 | 0.172 | 1.17 | 1.52 | 0.563 | 0.750 |
| 6506-04-04-SS | 04FP-04FJS Straight Stnls | 1/4 | 1/4-18 | 7/16-20 | 0.172 | 1.17 | 1.52 | 0.563 | 0.750 |
| 6506-04-05 | 04FP-05FJS Straight | 5/16 | 1/4-18 | 1/2-20 | 0.234 | 1.21 | 1.59 | 0.625 | 0.750 |
| 6506-04-05-SS | 04FP-05FJS Straight Stnls | 5/16 | 1/4-18 | 1/2-20 | 0.234 | 1.21 | 1.59 | 0.625 | 0.750 |
| 6506-04-06 | 04FP-06FJS Straight | 3/8 | 1/4-18 | 9/16-18 | 0.297 | 1.26 | 1.64 | 0.688 | 0.750 |
| 6506-04-06-SS | 04FP-06FJS Straight Stnls | 3/8 | 1/4-18 | 9/16-18 | 0.297 | 1.26 | 1.64 | 0.688 | 0.750 |
| 6506-06-04 | 06FP-04FJS Straight | 1/4 | 3/8-18 | 7/16-20 | 0.172 | 1.24 | 1.59 | 0.563 | 0.875 |
| 6506-06-04-SS | 06FP-04FJS Straight Stnls | - | - | - | - | - | - | - | - |
| 6506-06-06 | 06FP-06FJS Straight | 3/8 | 3/8-18 | 9/16-18 | 0.297 | 1.32 | 1.70 | 0.688 | 0.875 |
| 6506-06-06-SS | 06FP-06FJS Straight Stnls | 3/8 | 3/8-18 | 9/16-18 | 0.297 | 1.32 | 1.70 | 0.688 | 0.875 |
| 6506-06-08 | 06FP-08FJS Straight | 1/2 | 3/8-18 | 3/4-16 | 0.391 | 1.37 | 1.80 | 0.875 | 0.875 |
| 6506-06-08-SS | 06FP-08FJS Straight Stnls | 1/2 | 3/8-18 | 3/4-16 | 0.391 | 1.37 | 1.80 | 0.875 | 0.875 |
| 6506-06-10 | 06FP-10FJS Straight | 5/8 | 3/8-18 | 7/8-14 | 0.484 | 1.40 | 1.90 | 1.000 | 0.938 |
| 6506-08-06 | 08FP-06FJS Straight | 3/8 | 1/2-14 | 9/16-18 | 0.297 | 1.54 | 1.92 | 0.688 | 1.125 |
| 6506-08-06-SS | 08FP-06FJS Straight Stnls | 3/8 | 1/2-14 | 9/16-18 | 0.297 | 1.54 | 1.92 | 0.688 | 1.125 |
| 6506-08-08 | 08FP-08FJS Straight | 1/2 | 1/2-14 | 3/4-16 | 0.391 | 1.59 | 2.02 | 0.875 | 1.125 |
| 6506-08-08-SS | 08FP-08FJS Straight Stnls | 1/2 | 1/2-14 | 3/4-16 | 0.391 | 1.59 | 2.02 | 0.875 | 1.125 |
| 6506-08-10 | 08FP-10FJS Straight | 5/8 | 1/2-14 | 7/8-14 | 0.484 | 1.62 | 2.12 | 1.000 | 1.125 |
| 6506-08-10-SS | 08FP-10FJS Straight Stnls | 5/8 | 1/2-14 | 7/8-14 | 0.484 | 1.62 | 2.12 | 1.000 | 1.125 |
| 6506-08-12 | 08FP-12FJS Straight | 3/4 | 1/2-14 | 1-1/16-12 | 0.609 | 1.66 | 2.23 | 1.250 | 1.125 |
| 6506-08-12-SS | 08FP-12FJS Straight Stnls | 3/4 | 1/2-14 | 1-1/16-12 | 0.609 | 1.66 | 2.23 | 1.250 | 1.125 |
| 6506-12-10 | 12FP-10FJS Straight | 5/8 | 3/4-14 | 7/8-14 | 0.484 | 1.68 | 2.18 | 1.000 | 1.375 |
| 6506-12-10-SS | 12FP-10FJS Straight Stnls | 5/8 | 3/4-14 | 7/8-14 | 0.484 | 1.68 | 2.18 | 1.000 | 1.375 |
| 6506-12-12 | 12FP-12FJS Straight | 3/4 | 3/4-14 | 1-1/16-12 | 0.609 | 1.72 | 2.29 | 1.250 | 1.375 |
| 6506-12-12-SS | 12FP-12FJS Straight Stnls | 3/4 | 3/4-14 | 1-1/16-12 | 0.609 | 1.72 | 2.29 | 1.250 | 1.375 |
| 6506-12-14 | 12FP-14FJS Straight | 7/8 | 3/4-14 | 1-3/16-12 | 0.719 | 1.75 | 2.33 | 1.375 | 1.375 |
| 6506-12-14-SS | 12FP-14FJS Straight Stnls | 7/8 | 3/4-14 | 1-3/16-12 | 0.719 | 1.75 | 2.33 | 1.375 | 1.375 |
| 6506-12-16 | 12FP-16FJS Straight | 1 | 3/4-14 | 1-5/16-12 | 0.844 | 1.78 | 2.38 | 1.500 | 1.375 |
| 6506-12-16-SS | 12FP-16FJS Straight Stnls | 1 | 3/4-14 | 1-5/16-12 | 0.844 | 1.78 | 2.38 | 1.500 | 1.375 |
| 6506-16-16 | 16FP-16FJS Straight | 1 | 1-11-1/2 | 1-5/16-12 | 0.844 | 2.03 | 2.63 | 1.500 | 1.625 |
| 6506-16-16-SS | 16FP-16FJS Straight Stnls | 1 | 1-11-1/2 | 1-5/16-12 | 0.844 | 2.03 | 2.63 | 1.500 | 1.625 |
| 6506-20-20 | 20FP-20FJS Straight | 1 1/4 | 1-1/4-11-1/2 | 1-5/8-12 | 1.078 | 2.20 | 2.84 | 2.000 | 2.000 |
| 6506-20-20-SS | 20FP-20FJS Straight Stnls | 1 1/4 | 1-1/4-11-1/2 | 1-5/8-12 | 1.078 | 2.20 | 2.84 | 2.000 | 2.000 |
| 6506-24-24 | 24FP-24FJS Straight | 1 1/2 | 1-1/2-11-1/2 | 1-7/8-12 | 1.312 | 2.27 | 2.99 | 2.250 | 2.375 |
| 6506-24-24-SS | 24FP-24FJS Straight Stnls | 1 1/2 | 1-1/2-11-1/2 | 1-7/8-12 | 1.312 | 2.27 | 2.99 | 2.250 | 2.375 |
| 6506-32-32 | 32FP-32FJS Straight | 2 | 2-11-1/2 | 2-1/2-12 | 1.781 | 2.37 | 3.32 | 2.875 | 2.875 |
| 6506-32-32-SS | 32FP-32FJS Straight Stnls | 2 | 2-11-1/2 | 2-1/2-12 | 1.781 | 2.37 | 3.32 | 2.875 | 2.875 |
